SKU: 65487
Loading…

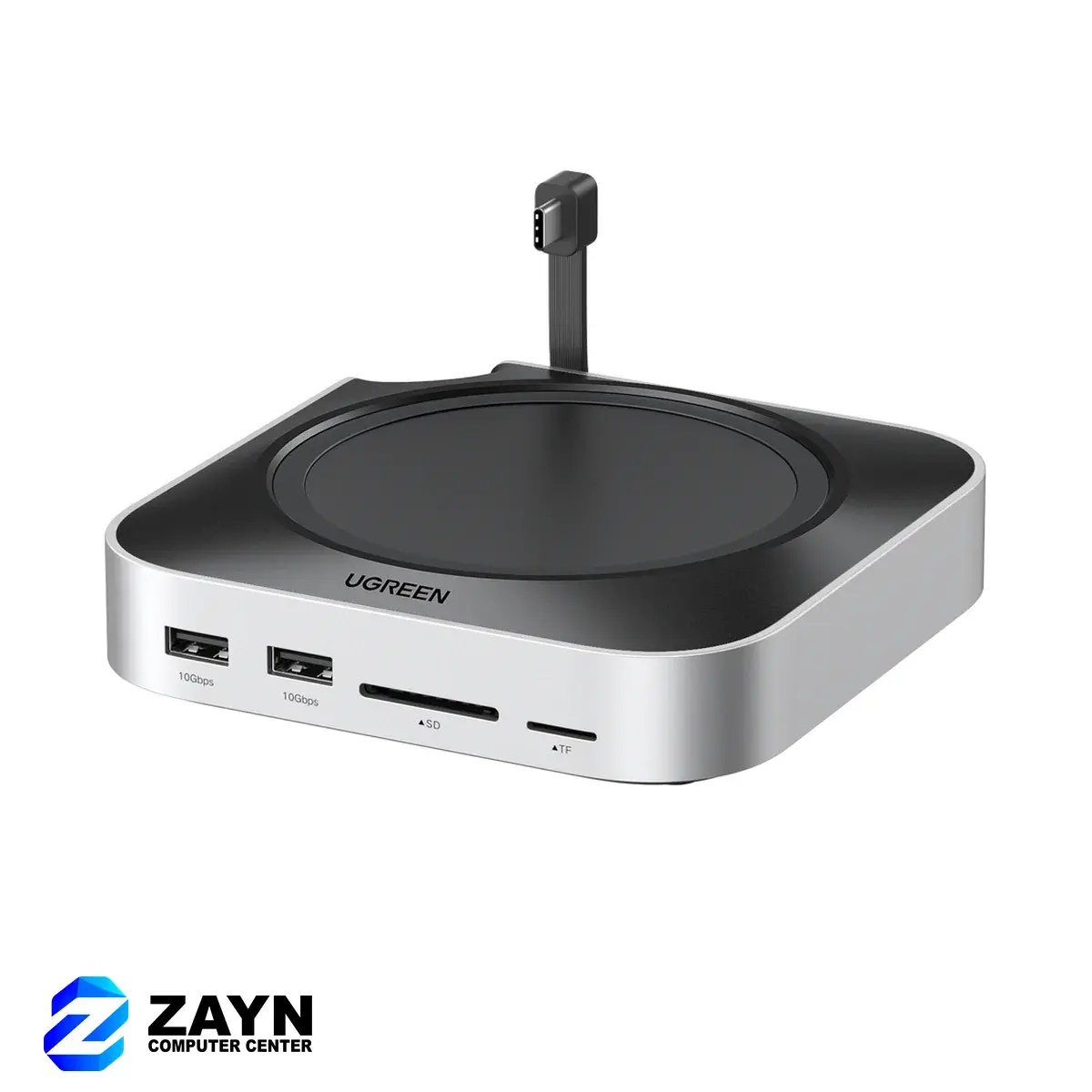

Built-in cable length 4.45 cm Input Port Specifications 1x USB-C: Male connector for connecting to the main device (Mac mini M4). Compliant with the USB 3.2 Gen2 specification, it theoretically offers a maximum transfer rate of 10Gbps and is backward compatible with USB 3.0/2.0/1.1; it does not support PD charging for the primary device. 1x USB-C: Femaleboard, used to connect a 5V power adapter to power the product. Output Port Specifications 3x USB-A: Female-of-pocket with a screen-printed "10Gbps" port for connecting USB devices (keyboard, hard drive, USB flash drive, camera, speaker, etc.). Compliant with USB 3.2Gen2 standards, with a theoretical transfer rate of up to 10 Gbps, it is backward compatible with USB 3.0/2.0/1.1. 2x USB-A: Femaleboard, port marked with "5Gbps" screen printing, used to connect USB devices (keyboard, hard drive, USB flash drive, camera, speaker, etc.). Compliant with the USB3.2Gen1 standard, it theoretically offers a maximum transfer rate of 5Gbps and is compatible with USB 2.0/1.1. 2x USB-C: Femaleboard, port marked with "10Gbps" screen printing, used to connect USB devices (keyboard, hard drive, USB flash drive, camera, speaker, etc.). Compliant with USB 3.2Gen2 standards, with a theoretical transfer rate of up to 10 Gbps, it is backward compatible with USB 3.0/2.0/1.1. 1x SD Interface: Used for connecting SD cards, compliant with SD3.0 standards, with a maximum transfer rate of 104 MB/s, supporting dual-SIM dual-read. 1x TF Interface: Used for connecting TF cards, compliant with SD3.0 standards, with a maximum transfer rate of 104 MB/s, supporting dual-SIM dual-read. 1x M.2 Interface: Hard disk box interface for connecting M. 2-port hard drive. Supports M.2 NVME protocol and PCIE 3.0X1, with a theoretical transmission rate up to 10Gbps and backward compatibility with PCI-E 2.0/1.0. Power interface specifications: USB-C socket Power requirements: Powered by the main device or connected to an external power adapter via a USB-C socket, with a power requirement of 5V ≥ 2A.* Shutdown Operation: No On/Off Status Indicator Light Description: No indicator light Switch Button: No Key Opening Product power consumption: no-load power ≈ 1.97W (5V 393mA), full-load power ≈ 9.5W (5V 1.9A) Voltage Isolation： / Short-circuit protection is not supported. Overcurrent protection: 3xUSB-A 10Gbps total limiting current 2.5A, 2xUSB-A 5Gbps total limiting current 2.0, 2xUSB-C 10Gbps total limiting current 2.5A Driver Installation ：Driver-Free Usage Supported systems: Windows, macOS, Linux, iOS Operating temperature: 0℃~45℃ Storage temperature: -20℃ to 60℃ Measured Temperature: Under room temperature of 25°C, the surface temperature of the (full-load) product is approximately 58°C.
